Bonovo China Perfect fit tilt motor quick coupler for all excavator types
Production Process:

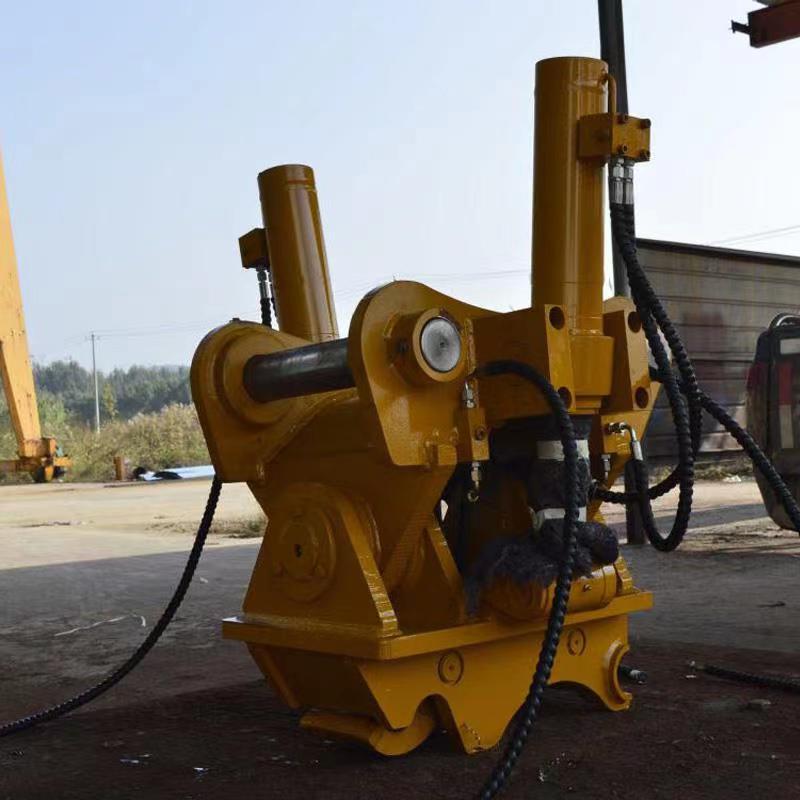

Tilting Quick Coupler
Bonovo Tilting Coupler with all the advantages of the Multi-Lock quick coupler, giving you increased flexibility and asset utilization.Total tilting angle of 180 degrees allows efficient shaping of gradients and cambers without needing to re-position the excavator.High quality hydraulic actuator gives solid angular stability.High quality hydraulic kit design for smooth operation and control.Compatible with all major brands of machines and attachments.Ranger style coupler for fast and simple attachment interchange.Coupler automatic locking system is constantly visible from the cab for increased safety and reassurance.Available to suit machines from 3 to 24 tonnes.



Commonly used parameters:
Part Number | Excavtor Weight(Tonnes) | Ccoupler Model | Fixed Pin Centres (mm) | Base Width(mm) | Total Tilt | Approx Weight(kg) |
QC45 PT-7 | 44720 | QC45 | 218-358 | 150 | 180° | 153 |
QC50PT-7 | 44784 | QC50 | 235-365 | 160 | 180° | 159 |
QC50PT-8 | 44784 | QC50 | 275-375 | 180 | 180° | 215 |
QC65 PT-9 | 44909 | QC65 | 355-430 | 220/250 | 134° | 326 |
QC70/71 PT10 | 15-18 | QC70/71 | 370-465 | 250 | 134° | 424 |
QC80 PT10 | 20-25 | QC80 | 385-530 | 300 | 134° | 592 |
QC80 PT11 | 20-25 | QC80 | 385-530 | 300 | 134° | 747 |
Q:Are you a manufacturer?
A:Yes! We are the manufacturer established in 2006. We do OEM manufacture service of all excavator attachments and undercarriage parts for famous brand like CAT, Komatsu and their dealers all over the world, such as Excavator/Loader Buckets, Extend Boom & Arm, Quick Couplers, Rippers, Amphibious Pontoons, etc.Bonovo Undercarriage Parts offered a wide range of undercarriage wear parts for excavators and dozers. Such as track roller,carrier roller,idler,sprocket,track link,track shoe,etc.
Q:Why choose BONOVO over any other companies?
A:We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every BONOVO product is armored and durable with a 12-month structural warranty. We use high quality materials sourced from the very best in China. Our design team works closely with customers for any custom orders.
Q:Which payment terms can we accept?
A:Normally we can work on T/T or L/C terms, sometimes DP term.
1). on T/T term, 30% advance payment is required and 70% balance shall be settled before shipment.
2). On L/C term, a 100% irrevocable L/C without “soft clauses” can be accepted. Please contact directly with our customer representatives for specific payment term.
Q:What logistics way for product delivery?
A:1).90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
Q:What are your warranty terms?
A:We provide a 12-month or 2000 working hours structural warranty on all our products, except failure caused by improper installation, operation or maintenance, accident, damage, misuse or non Bonovo modification and normal wear.
Q:What is your lead time?
A:We aim to provide customers with a fast lead time. We understand emergencies happen and priority production should be preferred in a faster turnaround. A stock order lead time is 3-5 working days, while custom orders within 1-2 weeks. Contact BONOVO products so we can provide an accurate lead time basing on situations.
