Bonovo Equipment Sales | Excavator Rotating Hydraulic Demotion Grapple

Short Description:

Excavator Range:3-25T

Rotation Degree:360°

Max Opening:1045-1880mm

Recommended Applications:Optimized for demolition, rock and waste handling applications


Product Detail

SERVICE

FAQ

Product Tags

In order to achieve a more perfect fit, Bonovo can customize the size according to the needs of customers.

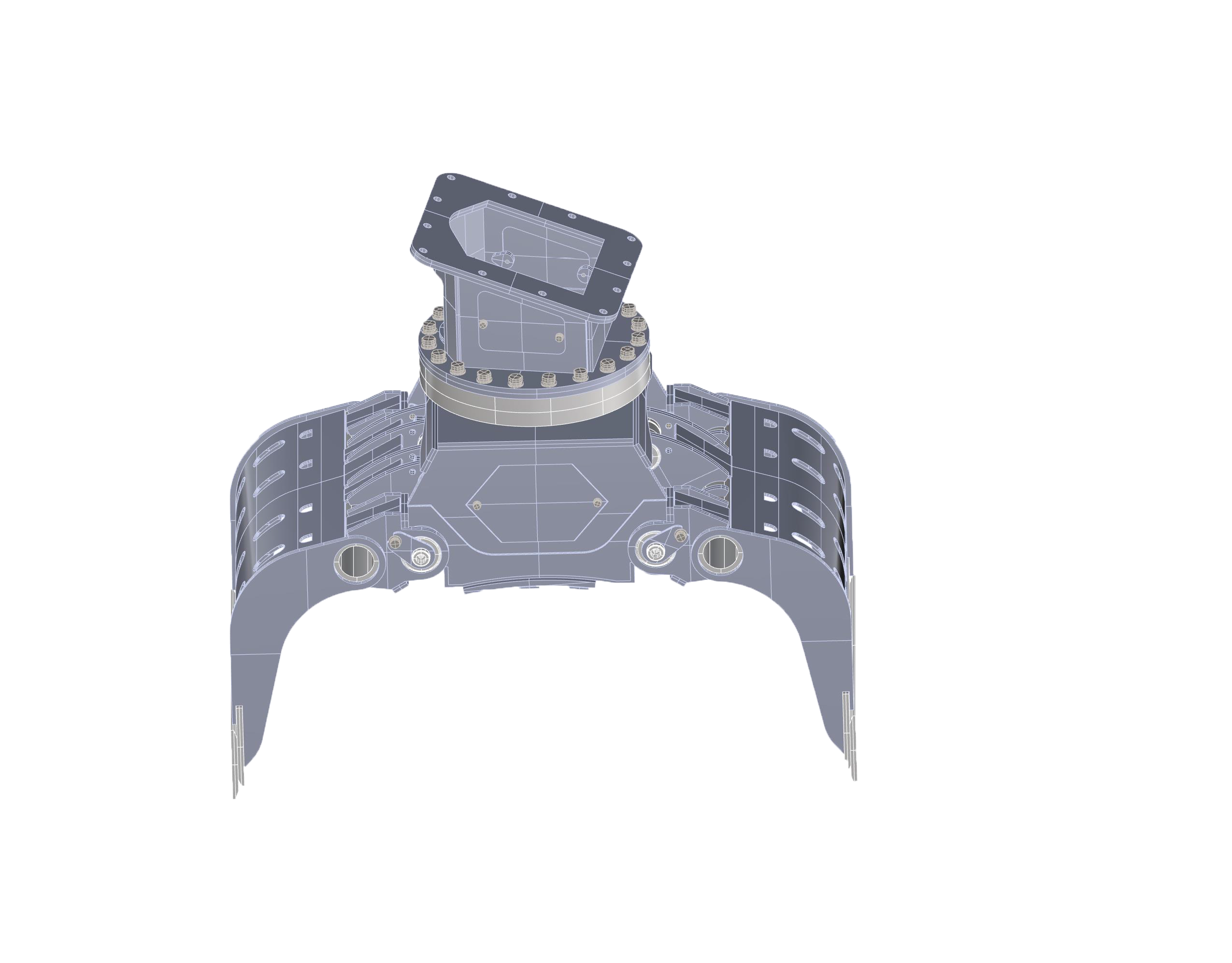

旋转抓物器1

The demolition grapples also known as “iron claw”, can be divided into mechanical grapples, which grab with the most power, while hydraulic grapples offer a full 360 degrees of mobility and work with higher precision. Bonovo rotating grapples are optimized for demolition, rock and waste handling applications. Our strong 360° hydraulic motor rotating system and high-tensile steel result in greater productivity and lower operating costs.

- 360 degree hydraulic rotation makes it a more flexible grappling effect
- Simple structure, lightweight and high grasping force
- The built-in balancing valve of the oil cylinder makes the operation smooth and maintains clamping force
- Built with wear-proof steel to last longer and go an extra step toward maximum durability.

demotion grapple (1)
grapple

Commonly used tonnage parameters:

Rotating Hydraulic Demotion Grapple

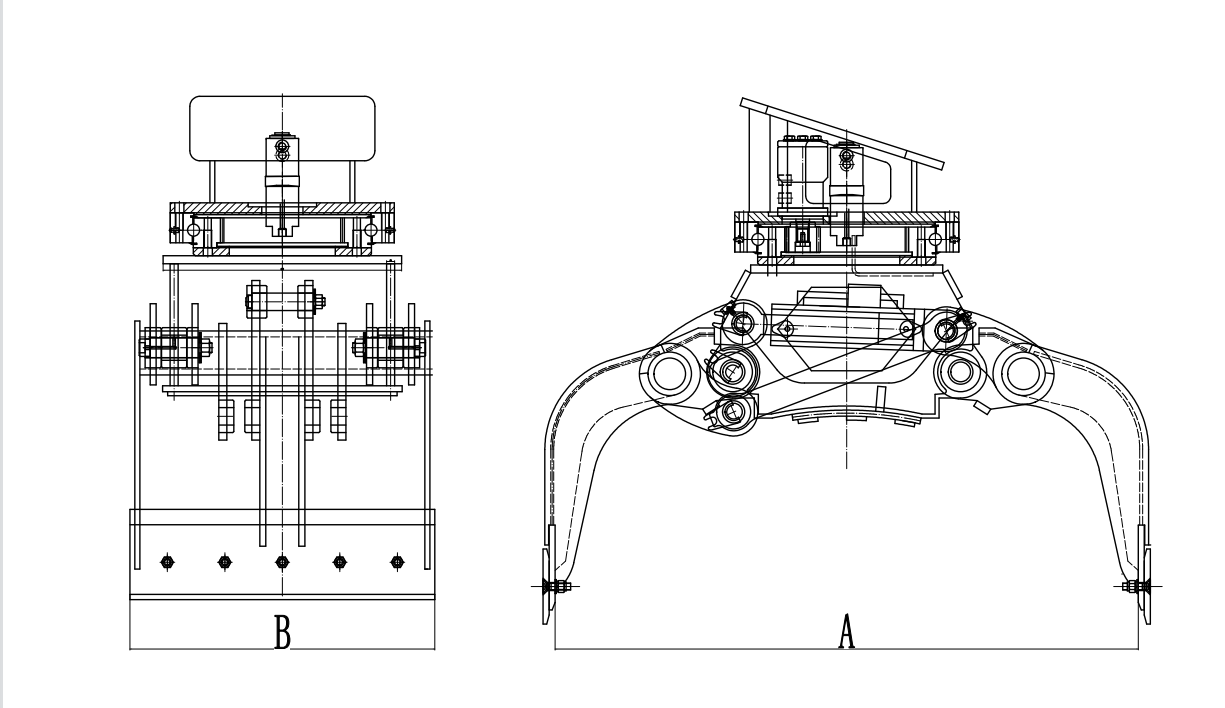

Model Equipment Full Open   (mm) A Width           (mm) B Operating Pressure (Mpa) Operating Flux-cylinder (L/Min) Operating Flux-motor  (L/Min) Rotating Speed(r/min) Weight      (kg)
BDG30 3-4T 1045 500 8-16 30-60 10-30 13-35 398
BDG50 5-6T 1160 610 8-16 30-60 10-30 15-40 515
BDG80 8-10T 1460 660 10-22 40-120 10-40 10-45 805
BDG120 12-16T 1675 740 10-25 40-120 10-50 10-50 1060
BDG200 20-25T 1880 1000 10-25 40-120 10-50 5-30 1885
