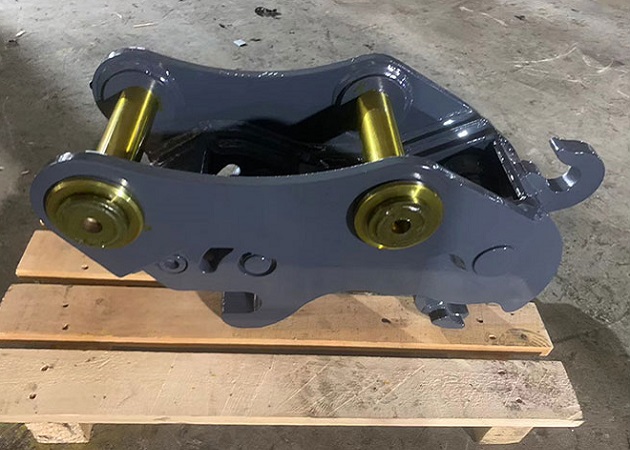

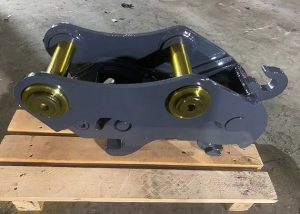

hydraulic double lock quick coupler - Bonovo
Carrier size 1 tonne to 50 tonne excavators
Easy to use on any machine and attachment.
Strong and durable construction to withstand robust working conditions.
All models come with an installation kit that includes hoses, fittings and hardware necessary to install it correctly to your equipment.
In order to achieve a more perfect flt, bonovo can customlze the size according to the needs of customers.
2-30 Ton
MATERIAL
NM400,Q355,hydro-cylinder
WORKING CONDITIONS
Applied to working environment where attachmentsneed to be changed frequently.
Hydraulic
Specification
| Ton | Pin diameter | Working pressure | Hydraulic flow | Weight | Product size |
| T | mm | KG/cm² | L/min | KG | mm |
| 2-4T | 30-40 | 40-100 | 10-20 | 45 | 475*250*300 |
| 5-6T | 45-50 | 40-100 | 10-20 | 70 | 545*280*310 |
| 7-10T | 55 | 40-100 | 10-20 | 100 | 600*350*320 |
| 12-18T | 60-70 | 40-100 | 10-20 | 180 | 820430*410 |
| 20-25T | 75-80 | 40-100 | 10-20 | 350 | 990*490*520 |
| 26-30T | 90 | 40-100 | 10-20 | 550 | 1040*540*600 |
Details of our specifications
The double lock quick coupler replaces the manual installation of the safety pin, which is safer and more efficient.
Front axle has a special locking device, spring and cylinder linkage control, only when the cylinder is fully recovered lock block will be retracted, in the case of cylinder failure to ensure that the attachment will not fall.
The rear axle safety hook is exclusively equipped, and the safety hook is retracted by its own weight. When installed, any Angle can be installed
