Mini Excavator 1.6Tons – ME16

Short Description:

Choose the right mini excavator for your job is very important to increase the productivity. Bonovo can offer a variety of models to fit your particular job, no matter you are looking for crawler or wheeled excavator, Bonovo can supply you an approximate operating weight from 0.7 to 8.5 tonnage.


Product Detail

FAQ

Product Tags

Specifications of ME16

2
1
3

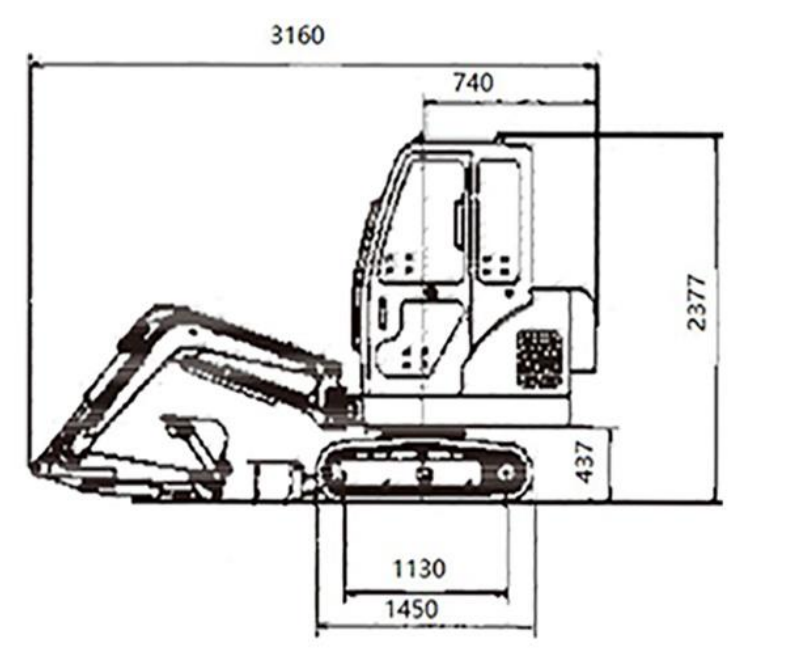

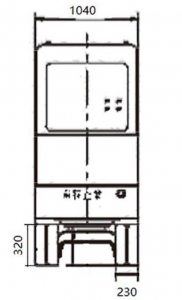

Dimensions
Track Gauge 1130mm
Track overall length 1450mm
Platform ground clearance 437mm
Platform end swing radius 740mm
Undercarriage width 1040mm
Track width 230mm
Track height 320mm
Transport length 3160mm
Overall height 2377mm

Overall Parameters of ME16

Specification
Machine weight 1400kg
Bucket capacity 0.045m3
Working device form Backhoe
engine Model Yanmar3TNV70
Displacement 0.854L
Rated output power/speed 10/2200kw/r/min
Maximum torque 51.9/1600N.M/r/min
speed and digging force Max travel speed 3.5km/h
Swing speed llrpm
Grade ability 30°
Bucket digging force 10.5KN
Arm digging force 6.5KN
Max tractive force 13.5KN
Ground pressure 35kgf/cm2
Track material Rubber track
Tensioning device type Grease cylinder

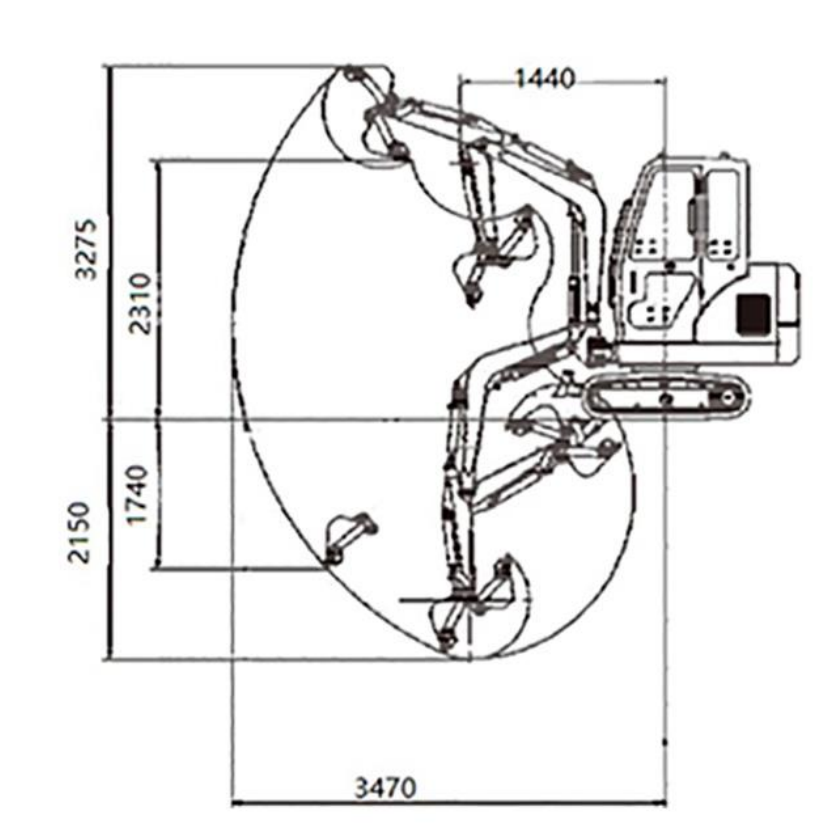

Operation Range
Max digging radius 3470mm
Max digging depth 2150mm
Max digging height 3275mm
Max dumping height 2310mm
Max vertical digging depth 1740mm
Mini swing radius 1440mm
Max Dozer blade lifting height 262mm
Max Dozer blade lifting depth 192mm

2

5
4

Production Processes

Applications - mini excavator trial operation

Qur qualifications and certificates

Container Loading and LCL Package

FAQ

1.How long is the mini excavator warranty time?

A: One year.

2.which certification of mini excavator do you have ?
A:CE, ISO9001, SGS,etc. If you need other certificates for different countries, we can support to apply;

3.Is it convenient to see visit your factory?
A:Any customer is warmly welcomed to visit our factory, kindly inform your schedule we will arrange it for you.

4.What are our advantages compared with Manufacturer/Factories?

- Competitive Price-we work as the leading dealers of various leading China construction machinery,and are treated with best dealership prices every time.From numerous comparison and feedback from clients,our price is more competitive than other manufacturer/factories.

- Industry experience: our industry experience can be dated back to 1990s and we set up our own factory in 2006.

- Quick Response-Our team is consisted of a group of diligent and enterprising people,working 24/7 to response client inquires and question all the time.Most problems can be solved within 12 hours.

5.How long will our price be valid?
We are a tender and friendly supplier,never greedy on windfall profit.Basically,our price remains stable throughout the year.We only adjust our price based on two situations:
1)The rate of USD: RMB varies significantly according to the international currency exchange rates.
2)Manufacturers/Factories adjusted the machine price,because of the increasing labor cost,and raw material cost.


  • Previous:
  • Next:

  • Q:Are you a manufacturer?
    A:Yes! We are the manufacturer established in 2006. We do OEM manufacture service of all excavator attachments and undercarriage parts for famous brand like CAT, Komatsu and their dealers all over the world, such as Excavator/Loader Buckets, Extend Boom & Arm, Quick Couplers, Rippers, Amphibious Pontoons, etc.Bonovo Undercarriage Parts offered a wide range of undercarriage wear parts for excavators and dozers. Such as track roller,carrier roller,idler,sprocket,track link,track shoe,etc.


    Q:Why choose BONOVO over any other companies?
    A:We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every BONOVO product is armored and durable with a 12-month structural warranty. We use high quality materials sourced from the very best in China. Our design team works closely with customers for any custom orders.

    Q:Which payment terms can we accept?
    A:Normally we can work on T/T or L/C terms, sometimes DP term.
    1). on T/T term, 30% advance payment is required and 70% balance shall be settled before shipment.
    2). On L/C term, a 100% irrevocable L/C without “soft clauses” can be accepted. Please contact directly with our customer representatives for specific payment term.

    Q:What logistics way for product delivery?
    A:1).90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
    2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
    3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.


    Q:What are your warranty terms?
    A:We provide a 12-month or 2000 working hours structural warranty on all our products, except failure caused by improper installation, operation or maintenance, accident, damage, misuse or non Bonovo modification and normal wear.

    Q:What is your lead time?
    A:We aim to provide customers with a fast lead time. We understand emergencies happen and priority production should be preferred in a faster turnaround. A stock order lead time is 3-5 working days, while custom orders within 1-2 weeks. Contact BONOVO products so we can provide an accurate lead time basing on situations.
