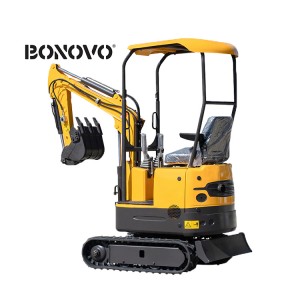

DIG-DOG DG10 Mini Excavator with multiple attachments from BONOVO

Short Description:

Tonnage: 1.0 tons
Engine: KOOP/Kubota
Additional features: boom side swing, Retractable undercarriage, 4 Pillar FOPS Canopy.
Walking Motor Brand: Eaton Motor




Product Detail

FAQ

Product Tags

DG10 mini Excavator with Tailless small wing structure and boom-side-shift option, which can be used for narrow-space operation tailless rotation, retractable chassis,deflective boom, first-class configuration, load sensitive system, changeable rubber track, environmental protection standard

This product with beautiful appearance, high configuration,superior perfomance,low fuel consumption,wide operating range. It is suitable for loosing soil of vegetable greenhouse,campus greening of municipal departments. digging the hole for tree planting of Fuit-land Nurseries. concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place and so on. Use the quick hitch can add the attachment tools like auger,hydraulic hammer,ditching bucket,gripple,thumb,tilt bucket,ripper,rake and so on. It can reduce maintenance and operating costs, iberate the workforce improve the mechanization, low investment, high return. Bonovo is willing to provide you with construction plans and procurement plans.

Specifications of DG10

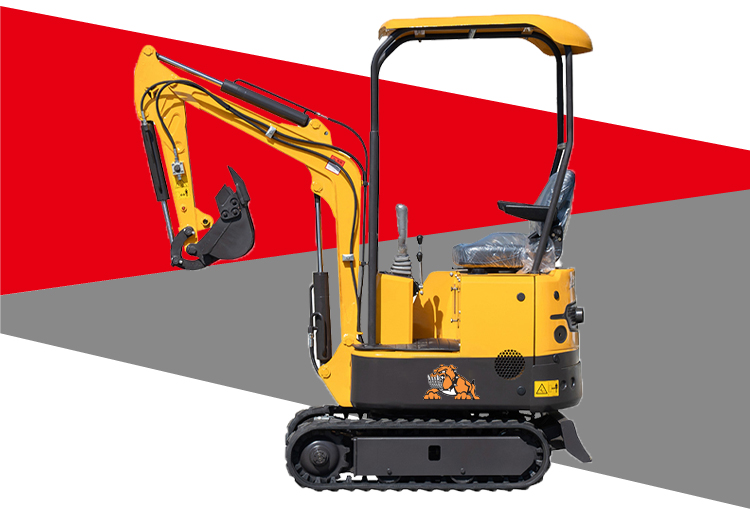

dg10新

About Weight

How will you transport your excavator? Make sure it isn’t too heavy for the setup you plan to use. Otherwise, you’ll cause too much strain to your hauling vehicle, or you won’t be able to move the excavator at all.

2
Machine model No. DG10
Type of tracks Rubber track
Machine weight 1940lbs/880kg
Bucket Capacity 0.02m3
System Pressure 16Mpa
Max. grade ability 300
Max.Bucket Digging Force 14KN
Operation type Mechanical lever

Overall Parameters of DG10

About Sizes:

All mini excavators are smaller than full-sized ones, but there are different sizes within the mini category. Some may still be too large for your job, while others may be too small.

To determine what size of excavator you need, you’ll have to evaluate your worksite. The excavator must be able to fit into the area that needs to be worked. This means it must be able to maneuver correctly, not just fit.

When looking at size, consider height, width, and length. Otherwise, you may end up with a dimension that doesn’t work.

Engine Model CHANGCHAI/KOOP
  Displacement 0.499L
  Type single-cylinder diesel
  Max. Power 7kW/1800r/min
  Max. Torque 26.8N.m
Overall Dimensions Overall Length 2120mm
  Overall Width 930mm
  Overall height 2210mm
  Chassis width 930mm
  Upper chassis ground clearance 410mm
  Cabin height 2210mm

Blade Width 930mm
  Height 235mm
  Max.lift of dozer blade 325mm
  Max.depth of dozer blade 175mm
Hydraulic system Pump type Gear pump
  Pump capacity 22L/Min
Motor Traveling motor Eaton 310
  Swing motor KERSEN

About Arm Length

Different excavators come with different arms. Since the arm is one of the most important parts of the excavator, make sure it will work for what you need it to do.

Consider your project and workspace. Will a standard arm do the trick? If not, find a size that works for you.

Excavator arms are available in long and extendable sizes. These allow for longer reach and higher dump height.

It won’t do you much good if your excavator can’t reach the container it’s supposed to dump stuff in, so make sure it’s the right size.

Working range

Max.Digging Height 2490mm
  Max.Dumping Height 1750mm
  Max.Digging Depth 1400mm
  Max.Vertical Digging Depth 1320mm
  Max.Digging Radius 2400mm
  Min.Swing Radius 1190mm
  Tail Swing Radius 795mm
3

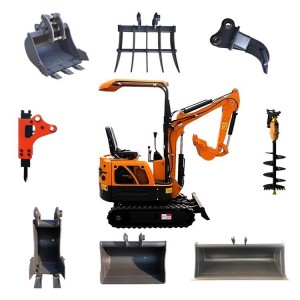

Variety of attachments for your choices

Variety of attachments for your choices

Attachments demostration - Breaker / You can choose suitable attachments for your specific job.

Applications

Product Details: Every Small Details Contribute to Big Difference!

- Euro 5 emisssion Yanmar engine

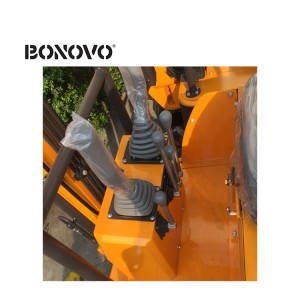

- Hydraulic pilot joystick located on both side of seat brings more comfortable operation

- Solid cast iron double counterweight gives more stable body

- Swing boom can support operator to go both indoor and outdoor working conditions

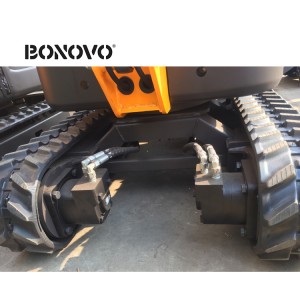

- Retractable undercarriage offers the adjustment function, easy for transportation
