Long reach arm and boom for excavator

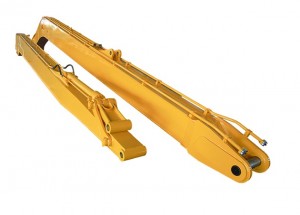

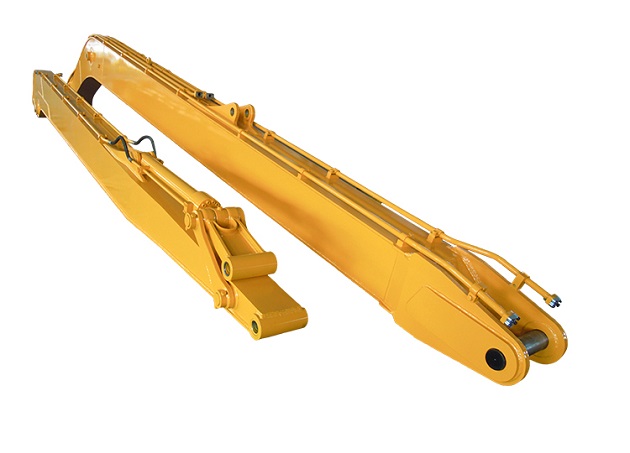

Bonovo Two Section Long Reach Boom and Arm is the most popular type of Boom and Arm.By Lengthening the boom and arm, it can be used in most long reach work conditions.A two section long reach arm & boom includes:Long boom *1,Long arm *1,bucket *1,bucket cylinder *1,H-Link&I-Link *1 set,pipes&hoses.
In order to achieve a more perfect flt, bonovo can customlze the size according to the needs of customers.
10-50 Ton
MATERIAL
HARDOX450.NM400,Q355
WORKING CONDITIONS
Deep pit foundation engineering, demolition of high-altitude buildings or river cleaning, etc

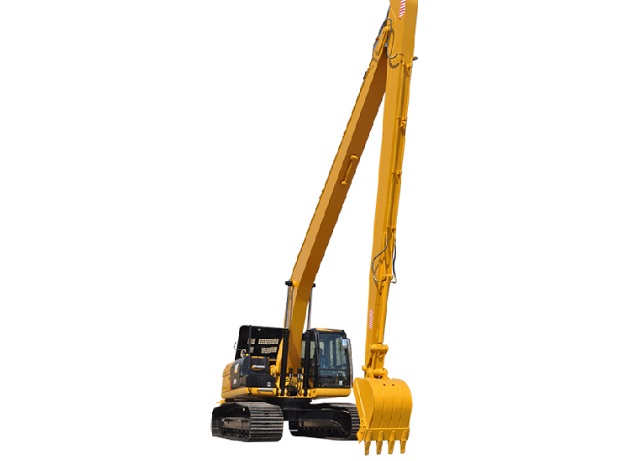

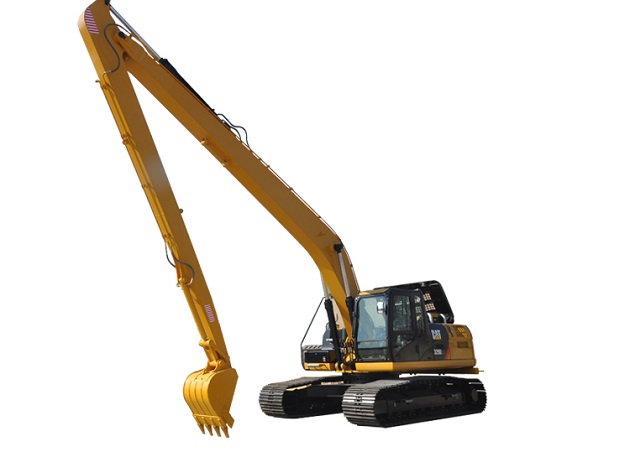

Long Arm & Boom
Bonovo Two Section Long Reach Boom and Arm is the most popular type of Boom and Arm.By Lengthening the boom and arm, it can be used in most long reach work conditions.A two section long reach arm & boom includes:Long boom *1,Long arm *1,bucket *1,bucket cylinder *1,H-Link&I-Link *1 set,pipes&hoses.
Specification
| Excavator Tonnage | Total Length | Description | Bucket Capacity | Bucket Cylinder | Length of Boom | Length of Arm | Weight of Boom | Weight of Arm |
| 20-22T | 15M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.4m3 | 13T type | 8800mm | 6200mm | 2700kg | 1500kg |
| 16M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.4m3 | 13T type | 9300mm | 6700mm | 2750kg | 1550kg | |
| 18M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.4m3 | 13T type | 9900mm | 8100mm | 2850kg | 1650kg | |
| 24-27T | 18M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.5m3 | 13T type | 10000mm | 8000mm | 3200kg | 1700kg |
| 20M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.4m3 | 13T type | 11200mm | 8800mm | 3500kg | 1800kg | |
| 22M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.35m3 | 13T type | 12200mm | 9800mm | 3700kg | 1900kg | |
| 30-38T | 18M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.5m3 | 13T type | 10000mm | 8000mm | 4000kg | 2200kg |
| 20M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.4m3 | 13T type | 11000mm | 9000mm | 4300kg | 2400kg | |
| 22M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.4m3 | 13T type | 12000mm | 10000mm | 4600kg | 2550kg | |
| 40-48T | 20M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.8m3 | 20T Type | 11000mm | 9000mm | 5400kg | 3200kg |
| 22M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.6m3 | 13T type | 12000mm | 10000mm | 5700kg | 3400kg | |
| 24M | Including long boom*1, long arm*1, bucket*1, bucket cylinder*1, H-link & I-link*1 set, pipes & hoses. | 0.6m3 | 13T type | 13000mm | 11000mm | 6200kg | 3600kg |
Details of our specifications
Long reach arm will be on boring machine after integrally welding. The concentricity accuracy of each connection part is more guaranteed, and the installation will be easier and faster.
Using robot welding, high-precision sensors and control systems, can accurately control welding current, voltage, temperature and other parameters during the welding process, thereby improving the accuracy and quality of the workpiece.
Strict inspection and quality control to ensure that can meet client's request and long-term use.
