Bonovo severe-duty bucket quarry bucket for digging in severe ground conditions where rock is prevalent
Excavator ranger:20–100 tons
Capacity:0.5–8CBM
Structure:GET options,Extended and reinforce lip,Side wear plates,Removable pins
Working conditions: used for loading in highly abrasive applications such as severe rock,delivering a higher level of wear
protection to extend its lifetime in aggressuvely abrasive applications
In order to achieve a more perfect fit, Bonovo can customize the size according to the needs of customers.

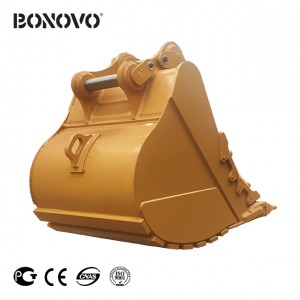

Severe Duty Bucket
Bonovo Severe Duty Bucket have features: Sturdy and durable; high wear-resistant steel NM400 or Hardox is used to make main blade plate, side blade plate and reinforcement plate of base plate. Reinforcement plates,side guard plates, protection plates and dedicated bucket adapters ae adopted, which significantly boost the abrasive and bending resistance of the bucket.
Application:
For digging hard soil with tough rubble or loading rubble and gravel, aggressive bucket loading in highly abrasive applications such as severe rock. Buckets deliver a higher level of wear protection for extended life in aggressively abrasive applications.
| Commonly used tonnage parameters: |
|||||
| Tonnes | Bucket Type | Width | G.E.T | Bucket Pins | Weight/kg |
| 12T | SEVERE-DUTY BUCKET | 30''-762mm | J250 series 4pcs |
including | 388 |
| 15T | SEVERE-DUTY BUCKET | 36''-915mm | J300 series 5pcs |
including | 600 |
| 18T | SEVERE-DUTY BUCKET | 42''-1067mm | J350 series 5pcs |
including | 815 |
| 20T | SEVERE-DUTY BUCKET | 48''-1220mm | J350 series 5pcs |
including | 1085 |
| 25T | SEVERE-DUTY BUCKET | 54''-1372mm | J400 series 6pcs |
including | 1407 |
| 30T | SEVERE-DUTY BUCKET | 60''-1524mm | J450 series 6pcs |
including | 1725 |
| 36T | SEVERE-DUTY BUCKET | 60''-1524mm | J450 series 6pcs |
including | 1725 |
| 49T | SEVERE-DUTY BUCKET | 66''-1676mm | J550 series 6pcs |
including | 2370 |
