BONOVO Tilt Bucket for Excavator 1-80 ton

BONOVO Excavator Tilt Bucket can increase productivity because they provide up to 45 degrees slope left or right. When sloping, trenching, grading, or ditch cleaning, control is fast and positive so you get the right slope on the first cut. The tilt bucket is available in a wide variety of widths and sizes to suit any application and they are designed to match the performance capabilities of excavator. Bolt-on edges are supplied with it.

tilt bucket video

In order to achieve a more perfect flt, bonovo can customlze the size according to the needs of customers.

BONOVO excavator tilt bucket

1-80ton

MATERIAL

HARDOX450/NM400/ Q355

WORKING CONDITIONS

Drainage, groundworks and general landscaping,etc.
tilt bucket

Tiltable angle

90°

tilt bucket

BONOVO Excavator Tilt Bucket can increase productivity because they provide up to 45 degrees slope left or right. When sloping, trenching, grading, or ditch cleaning, control is fast and positive so you get the right slope on the first cut. The tilt bucket is available in a wide variety of widths and sizes to suit any application and they are designed to match the performance capabilities of excavator. Bolt-on edges are supplied with it.

Specification

Tonnage Width/mm Angel/Degree Working pressure/Mpa Cylinder force/N Cylinder qty Weight/Kg
1-2T 900 45 18 420 Single-cylinder 140
3-4T 1200 45 18 710 Double-cylinder 200
5-7T 1200 45 18 710 Double-cylinder 350
8-11T 1500 45 21 1040 Double-cylinder 550
12-14T 1700 45 25 1240 Double-cylinder 880
15-18T 1700 45 26 1680 Double-cylinder 950
20-25T 1800 45 26 2190 Double-cylinder 1380
28-35T 2000 45 28 2260 Double-cylinder 1600
40-45T 2200 45 28 2680 Double-cylinder 1850

Details of our specifications

Best Excavator Tilt Bucket | Grading Bucket Factory

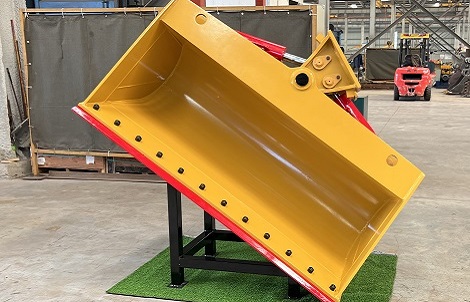

Adopt double-edged plate style, the secondary cutting plate is a casting, the performance is comparable to NM400 material, the secondary cutting plate is a counterbore square diameter, and the bolts are hidden in the cutting plate, which does not affect the flat ground work.

Best Excavator Tilt Bucket | Grading Bucket Factory

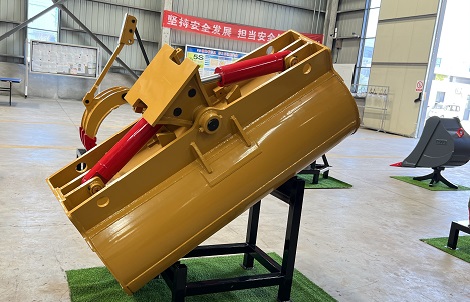

Except for small tons, the width is below 1000 mm and the width is limited by the width of the single cylinder. All others use dual cylinders. Both can achieve left and right 45° oscillation.

Best Excavator Tilt Bucket | Grading Bucket Factory

The oil cylinder adopts imported sealing kit, which greatly improves the service life of the cylinder.

Application Scenario

tilt bucket
tilt bucket
tilt bucket
