BONOVO Undercarriage Spare Parts Excavator Track Guard for All Brands - Bonovo

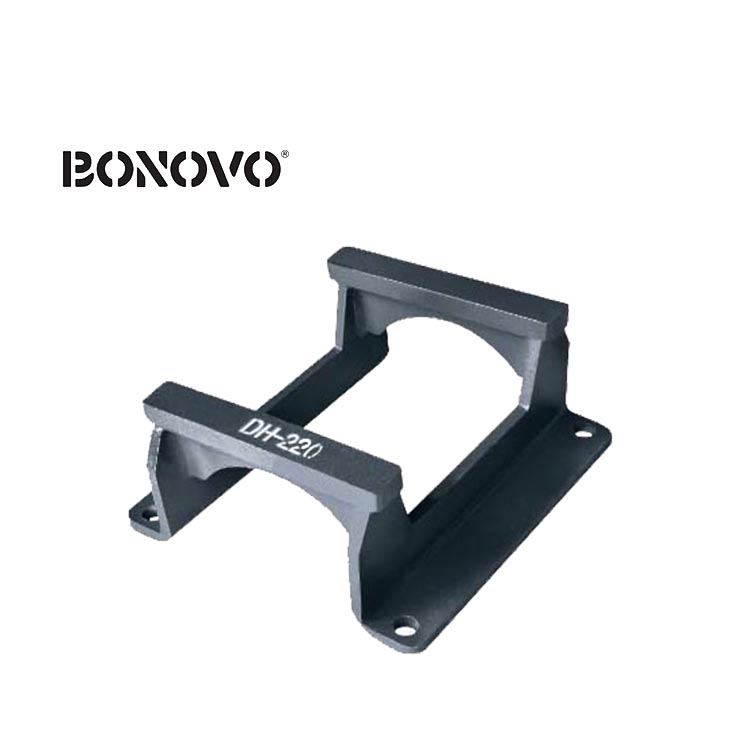

BONOVO Undercarriage Spare Parts Excavator Track Guard for All Brands

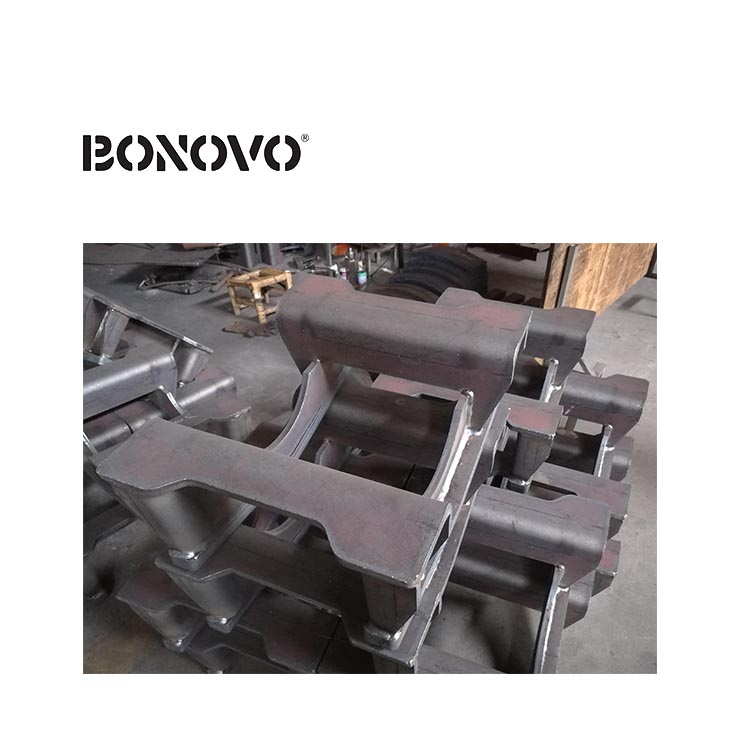

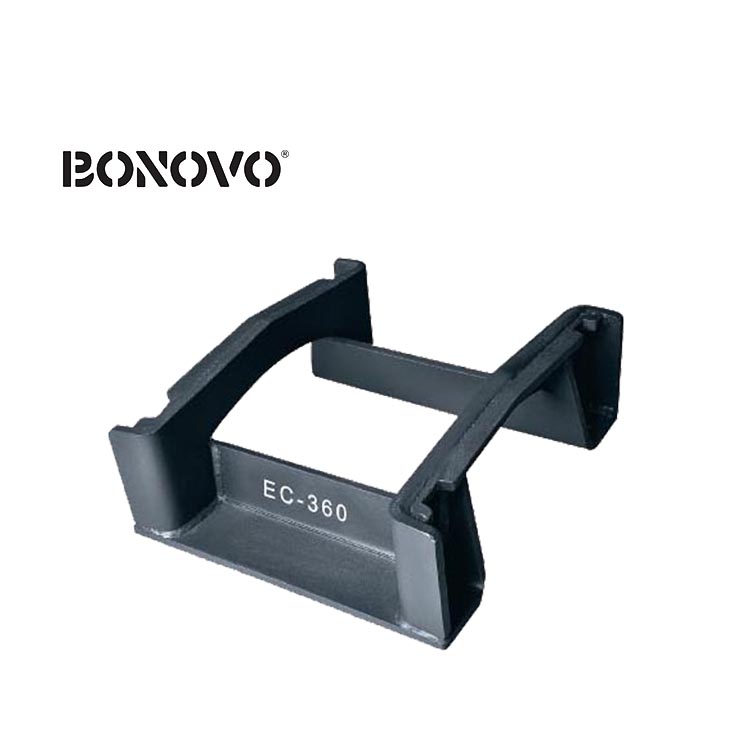

Track guard is the necessary assy accessory for excavator undercarriage. In order to help your track chains a severe longer lifetime, the track guard plays a very heavy and important role in preventing the track link or chain from falling off or abrading. The track guard track frame can be customized according to your machine and sample drawings.

GET IN TOUCH

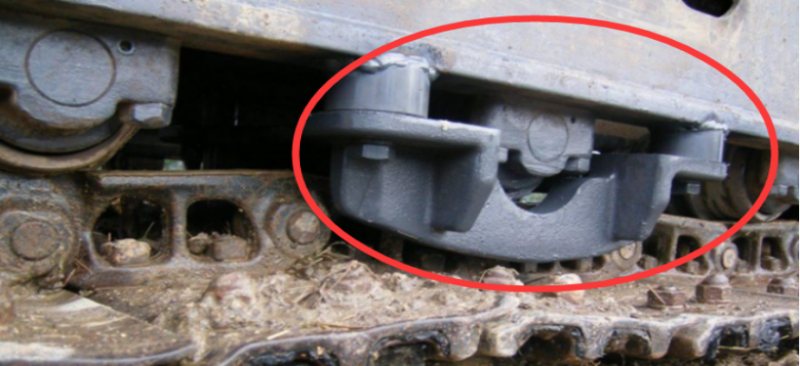

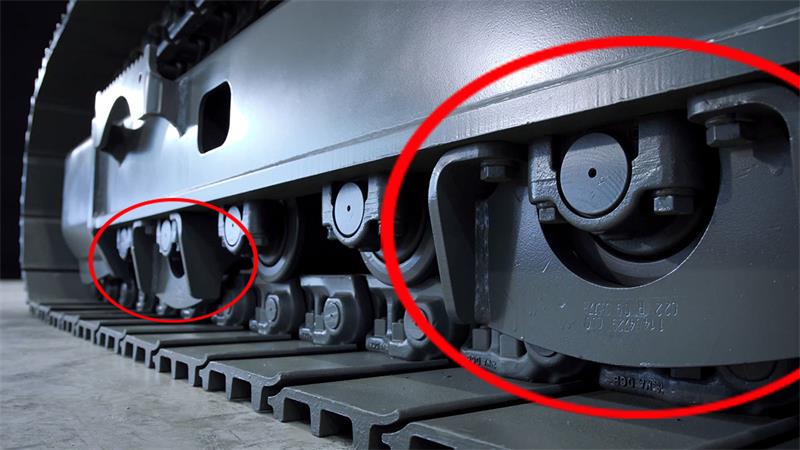

Applications

Track Guards - Why should I use them?

"Why should I install track guards on my excavator? I'm not having problems with my tracks yet!"

This is something we hear a lot of.

Track guards are designed and proven to reduce wear on your tracks before you start having problems. They are designed to keep your tracks in place and prevent them from snaking and coming off.

Some of the main reasons for putting track guards on are highlighted as below:

- Saving wear

- Avoid Tracks falling off

How many track guards Do I need?

We recommend you have 2 Track Guards per side on all 6 -14 ton excavators. From 16 tons up we recommend you have 2 - 3 Track Guards.

Model Reference

Model	Size(MM)	Weight(KG)
PC-60		15
PC-120/PC-100	12mm	22
PC-120/PC-100	14mm*25mm
PC-200	14mm normal	33
	16mm	38
	OEM 16*30	41
	OEM with thick bar	51
PC-300/PC-360	16mm*30mm	53
PC-300/PC-360	OEM enlarge 18*40	75
PC-400/PC-450	18mm*30mm/40mm	70
EX-70/PC-60		11
EX-120/EX-100	12mm	22
EX-120/EX-100	14mm*25mm
EX200-1	14mm	35
EX-200/ZAX-200	14mm	33
	16mm	38
	OEM	40
	OEM with thick bar	50
ZAX-230		38
EX-300	16mm	58
ZAX-350/ZAX-360	16mm*30mm	60
EX-450	OEM, complete set	147
E-120	12mm	22
E-320/E-200B	14mm	33
	16mm	38
	OEM	50
E-324	OEM over thickness	74
E-325	16mm*30mm	41
	OEM over thickness	74
E-329	OEM over thickness	74
E-330C	16mm	76
E-330C	OEM	88
E-330D	16mm	67
E-330D	OEM	78
DH-55		11
DH-150	12mm	22
DH-150	14mm*25mm
DH-220	14mm	33
DH-220	16mm	39
