Underground loader bucket for wholesale and retail with aftersale service-from BONOVO factory direct sale
Capacity:1-15m³
Fit Brand:Caterpillar,Komatsu,John Deere,Volvo,etc
Type:GP/HDR
Width:Customizable
In order to achieve a more perfect fit, Bonovo can customize the size according to the needs of customers.
![underground loader bucket 0](/uploads/underground-loader-bucket-0.jpg)

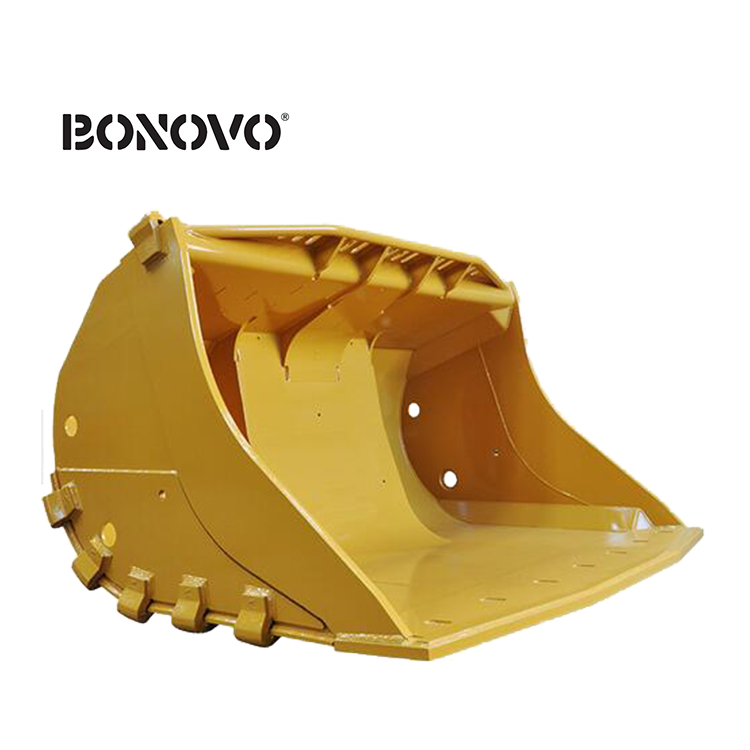

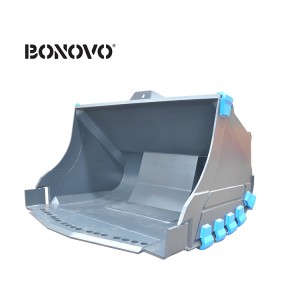

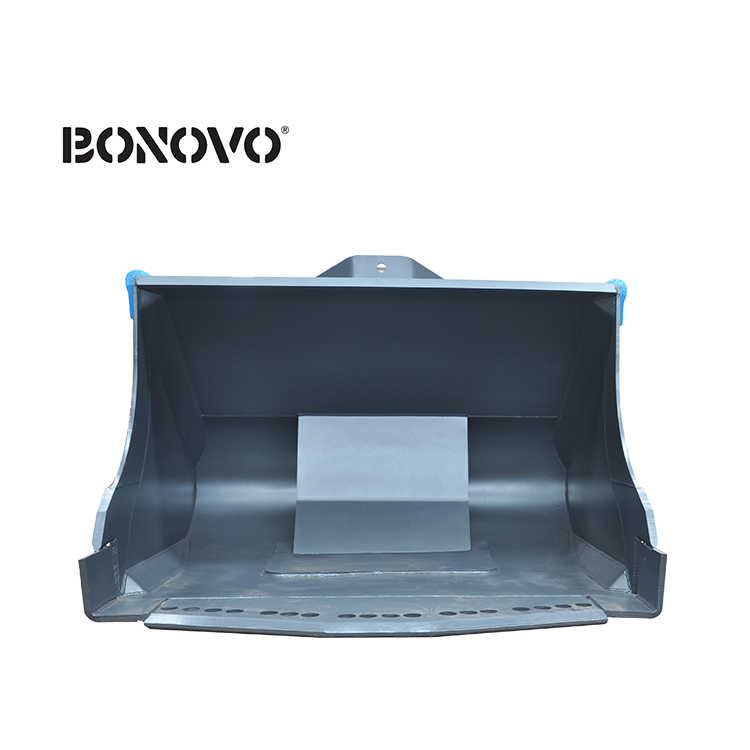

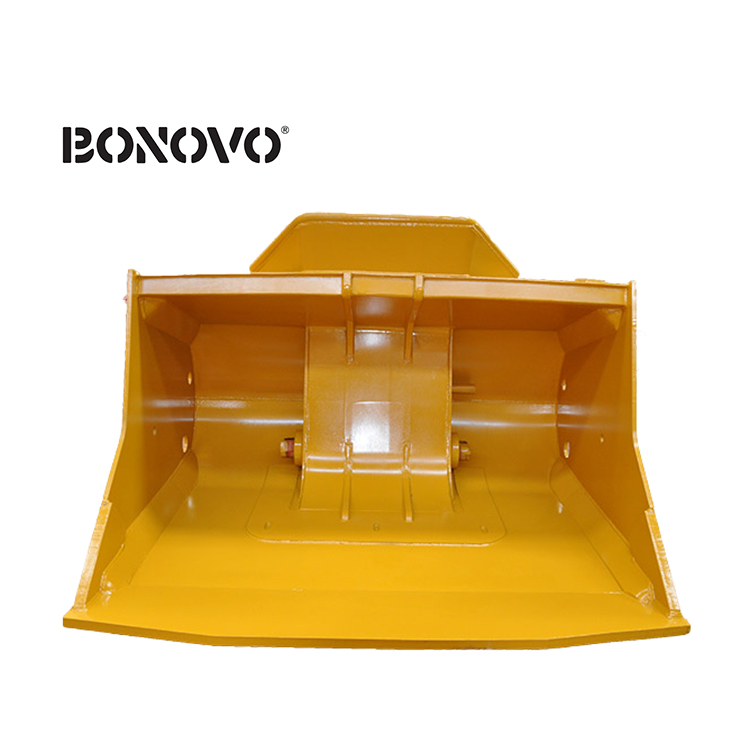

Underground Loader Bucket
Bonovo Underground Loader Bucket is special for the scooptram for Mining. R1300,R1600,R1700,R2900, LH410, LH517, ST1030 buckets are very popular .
Besides the bucket structure, BONOVO also supplies the replacement teeth system for Bonovo Underground Loader Bucket as well as the reinforced plans according to Customers' Requirements.
![underground loader bucket (4)1](/uploads/underground-loader-bucket-41.jpg)
![underground loader bucket 2](/uploads/underground-loader-bucket-2-300x273.jpg)
![underground loader bucket (12)1](/uploads/underground-loader-bucket-121.jpg)
Commonly used tonnage parameters:
Part No. | Bucket Capacity(m³) | Width-Bucket(mm) | |
R1300 | 243-5577 | 2.4 | 2155 |
186-9278 | 2.8 | 2185 | |
243-6143 | 3.1 | 2318 | |
243-6224 | 3.4 | 2518 | |
R1600 | 227-4702 | 4.2 | 2723 |
203-1792 | 4.8 | 2723 | |
227-4704 | 5.6 | 2723 | |
227-4703 | 5.9 | 3018 | |
R1700 | 256-0862 | 4.6 | 2689 |
255-9970 | 5 | 2689 | |
252-7194 | 5.7 | 2689 | |
226-5404 | 6.6 | 2689 | |
R2900 | 303-8806 | 6.3 | 3176 |
249-4899 | 7.2 | 3176 | |
249-4892 | 8.3 | 3272 | |
249-4893 | 8.9 | 3472 |
