BONOVO Undercarriage Parts Track Adjuster Assy Track Tensioner

Track adjuster or tensioner also called track adjuster cylinder which is used onto excavators and bulldozers.

Available for all brands and models of excavators, Hitachi, Komatsu, Caterpillar and other types of excavator crawler regulators.

A track adjuster assembly consists of a recoil spring, cylinder and a yoke.


Features

Tensioner for construction machine also could be called Recoil Spring Assembly.

It is consist of hydraulic system, recoil spring and connection parts.

Exclusive seal group ensure no oil leakaging, providing a stable status of hydraulic system for any working conditions.

The application of automatic in furnace roll-over device in roller hearth electric furnace can make the burning of material well-proportioned, as a result the finished spring performs more stable.

Specification

Material 60Si2MnA,60Si2CrA,60Si2CrVA
Wire diameter 5mm~80mm
Free hight 10mm~1188mm
hardness 45HRC~55HRC
Direction of coils Right, left
No.of coils Unlimited
Application Excavator, digger machine,car,train,shakeout machine,etc.
Color Blackwhite,blue,red,yellow,grey,etc.
Production method Hot formed.cold formed
Note The materials and specifications can be dedided by the customers.



Popular Models

  • For Komatsu: PC55、PC60、PC120、PC130、PC200-6、PC200-7、PC220-6、PC220-7、PC300-6、PC300-7、PC400、D31PX-21
  • For Hitachi: ZX120、ZX200、ZX200-3
  • For Kobelco: SK120-3、SK200
  • For Caterpillar: CAT320D
  • For YANMAR: B15

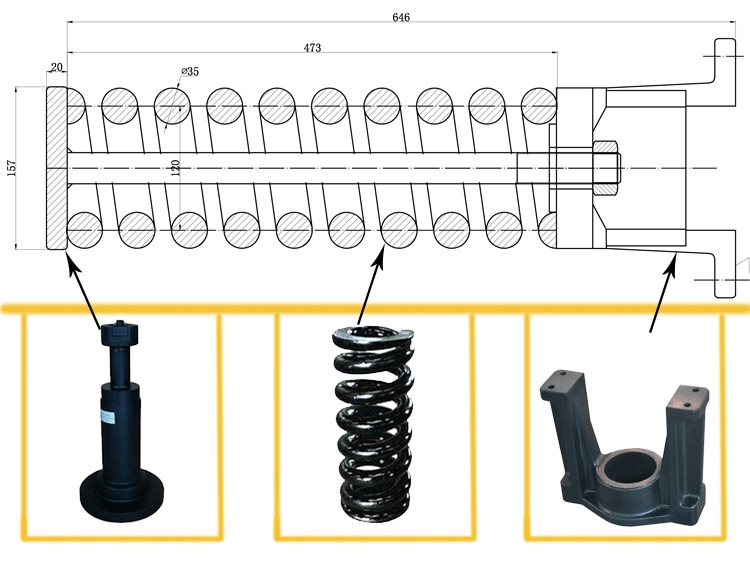

Manufacturing/Structure Drawings

Components

a complete track adjuster assembly/spring recoil assy, or someone call it idler adjuster consisting of those components as following

components

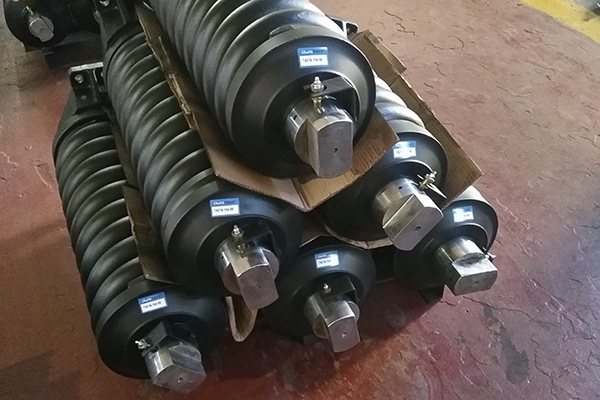

Details

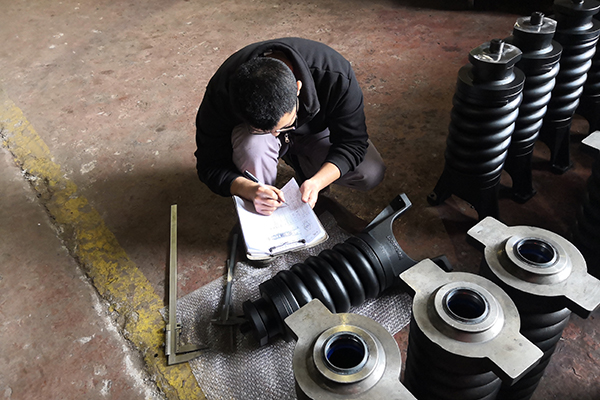

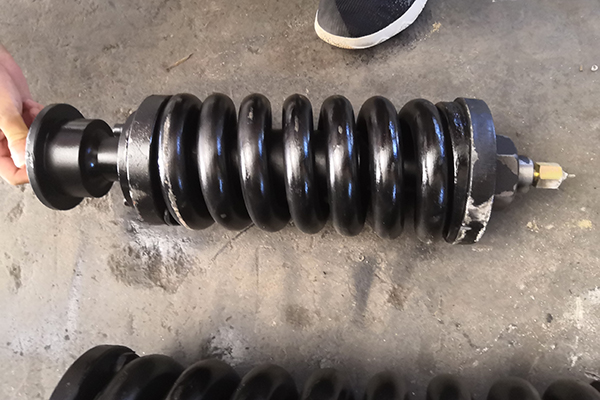

Testing

We use strict quality standard and follow strict SOP to proceed quality inspection

Check Your Track Tension Regularly

Operate the machine for at least a half hour to allow the track to acclimate to the working area before you check and set the track tension. If conditions change, like additional rainfall, readjust the tension. Tension should always be adjusted in the working area. Loose tension causes whipping at higher speeds, resulting in excessive bushing and sprocket wear. If the track is too tight, it causes stress on the undercarriage and drive train components while wasting horsepower.

Incorrect track tension may lead to increased  wear, so it is important to adhere to the proper tension. As a general rule, when your operators are working in soft, muddy conditions, it is recommended to run the tracks slightly looser.

"If steel tracks are too tight or too loose, it can quickly accelerate wear,”  “A loose track could cause the tracks to de-track."
